Quick comparison chart

Pearl-2
Flagship model with up to 6 encoded channels
Learn more

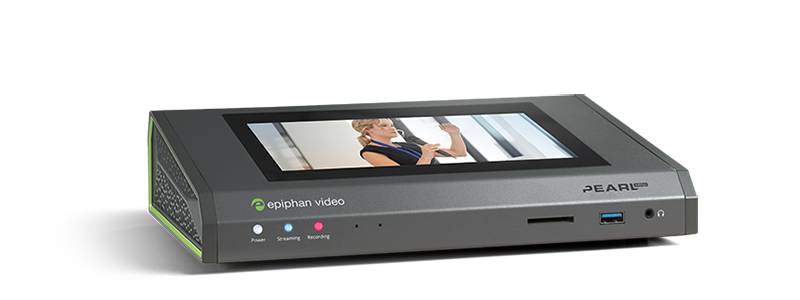

Pearl Mini
Intuitive touchscreen operation with up to 3 encoded channels
Learn more
Pearl Nexus
Up to 3 encoded channels in a 1RU form factor
Learn more
Pearl Nano
Portable 4K single-channel encoder
Learn more
6+
video inputs
3
video inputs
3
video inputs
2
video inputs
4K
6 encoded channels
500 GB internal SSD
HD
3 encoded channels
SD card (user-supplied)
HD
3 encoded channels
1 TB internal SSD
4K
1 encoded channel
SD card (user-supplied)
Encoded channels
6 × Full HD
or
1 × 4K
3 × Full HD3 × Full HD1 × 4K
Video inputs
2 × 4K HDMI
2 × HDMI
2 × 12G SDI
2 × USB
2 × HDMI
1 × 3G SDI
2 × USB
2 × HDMI
1 × 3G SDI
2 × USB
1 × 4K HDMI
1 × 12G SDI
Audio inputs
4 × XLR
1 × RCA (stereo pair)
2 × XLR/TRS
1 × 3.5mm
1 × RCA (stereo pair)
2 × XLR/TRS
1 × 3.5mm
1 × RCA (stereo pair)
2 × XLR
1 × USB
1 × RCA (stereo pair)
Network inputs
SRT
NDI
NDI|HX
RTSP
SRT
RTSP
NDI|HX
SRT
RTSP
NDI|HX
SRT
RTSP
Video output
2
2 × HDMI
1
1 × HDMI
1
1 × HDMI
1+1
1 × HDMI
1 × HDMI (pass through)
Resolution
4K
Up to 2160p (4K)
Full HD
Up to 1080p (Full HD)
Full HD
Up to 1080p (Full HD)
4K
Up to 2160p (4K)
Storage
512 GB SSDSD card (user supplied)
SATA M.2 SSD (user supplied)
1 TB SSDSD card (user supplied)
SATA M.2 SSD (user supplied)
Power
DCDCDCPoE+ or DC
Form factor
Portable desktop model
19″ rackmount model
Portable desktop model with 7″. VESA mountable.1RU with detachable mountsPortable desktop model
(Optional 1 RU Rack Shelf sold separately)
Dimensions
Desktop: 11.81″ × 9.45″ × 3.54″
(300 mm × 240 mm × 90 mm)

Rackmount: 19.12” × 10.88” × 3.5”
(485 mm × 276 mm × 89 mm)
10.25” × 6.75” × 2.37”
(261 mm × 172 mm × 60 mm)
19” × 7.5” × 1.75”
(482 mm × 190 mm × 44 mm)
8.13″ x 5.91″ x 1.69″
(206 mm x 150 mm x 43 mm)
Weight
Desktop: 8.38 lbs (3.8 kg)
Rackmount: 12.1 lbs (5.5 kg)
3.8 lbs (1.7 kg)5.3 lbs (2.4 kg)2.0 lbs (0.907 kg)

For a full list of features and in-depth tech specs, see the product pages: Pearl-2, Pearl Mini, Pearl Nexus, Pearl Nano.
